44 Pin D-Sub High Density Connector
44 Pin D-Sub High Density Connector
SIGNALORIGIN® is a leading China 44 Pin D-Sub High Density Connector manufacturer, supplier. 44 pin d sub high density connectors, with 6.0 copper alloy fork,with nuts, insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. High Density version connectors available in 15,26,44,62 and 78 positions. All our contacts are ROHS & non- ROHS Compliant versions available.
Send Inquiry
Product Description
Product Introduction of the 44 Pin D-Sub High Density Connector
SIGNALORIGIN® is a professional leader China 44 Pin D-Sub High Density Connector manufacturer with high quality and reasonable price. Our high density connectors also available in 15, 26, 44,and 78 positions, they are a good choice for a low cost industry standard high density connection.
Product Parameter (Specification) of the 44 Pin D-Sub High Density Connector
|
Material |
Insulator material |
PBT+30% G.F (UL94V-O) |
|
Insulator color |
Black/Blue (can be customized) |
|
|
Contacts material |
Copper alloy |
|
|
Contact plating |
Goldplated on nickel |
|
|
Shell material |
Steel/SPCC-SD, nickel or tin plated |
|
|
Electrical |
Dielectric rating |
300V AC |
|
Current rating |
3AMP |
|
|
Contacts OD |
∮0.76 |
|
|
Contact resistance |
10mΩ Max |
|
|
Insulation resistance |
5000MΩ Min at 500V DC |
|
|
Mechanical |
Dielectric withstanding voltage |
750V AC rms at 1 minute |
|
Insertion force |
88N Max |
|
|
Extraction force |
8.8N Min |
|
|
Durability |
500 cycles |
|
|
Operating temperature |
-55°C～125°C |

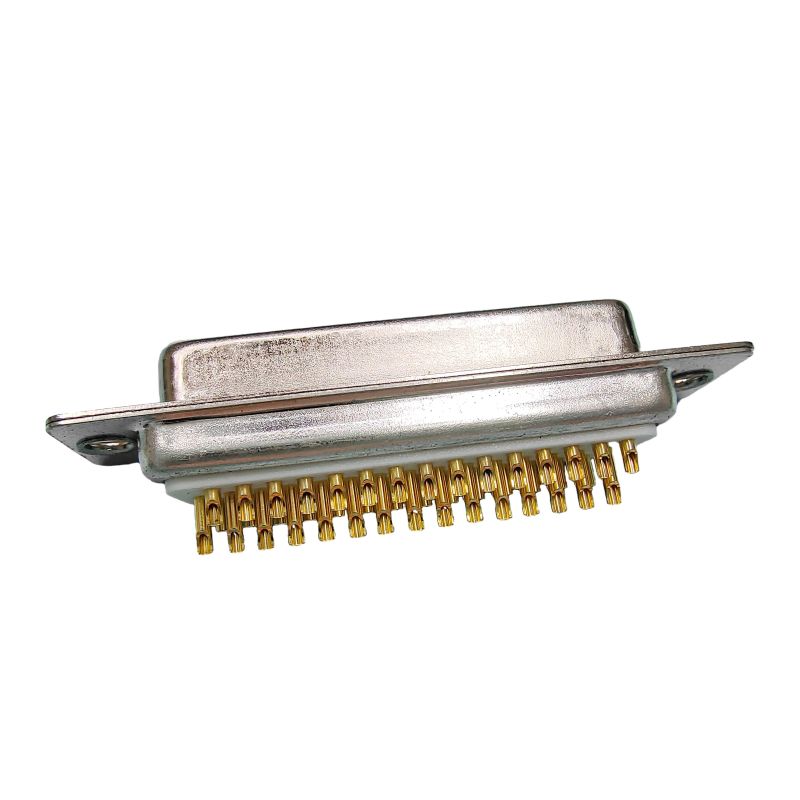

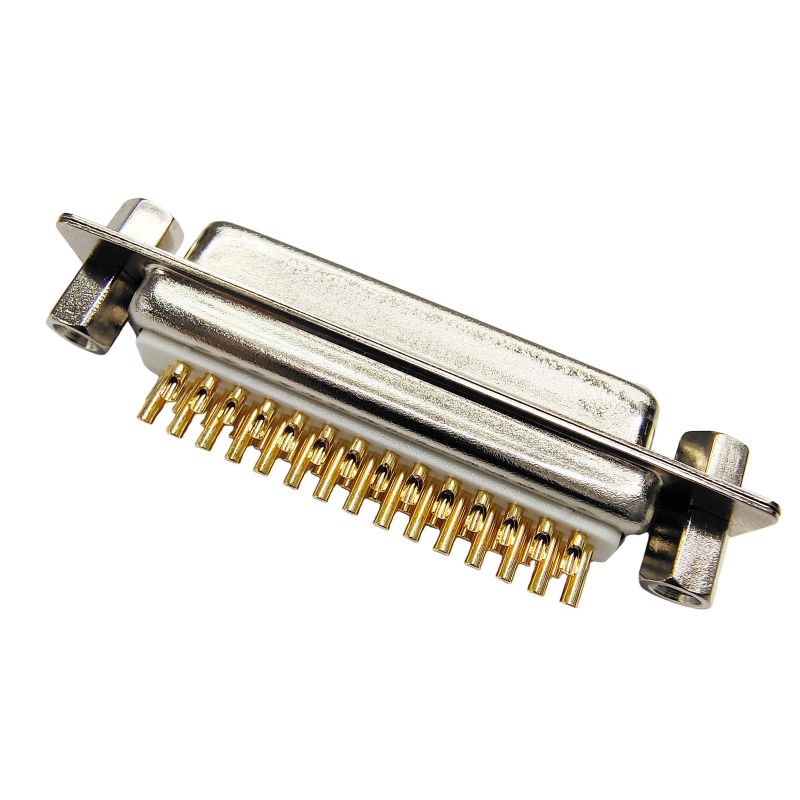

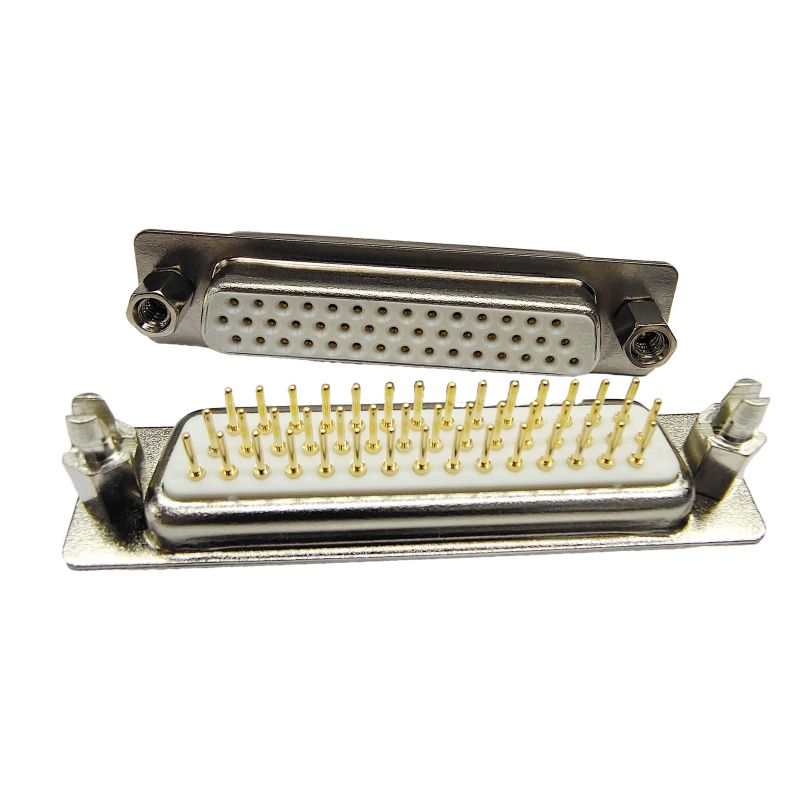

Product Details of the 44 Pin D-Sub High Density Connector
Related product of the 44 Pin D-Sub High Density Connector
Co-operation cases of the 44 Pin D-Sub High Density Connector
Deliver,Shipping And Serving of the 44 Pin D-Sub High Density Connector
FAQ
1) What kind of payment does your company support?
T/T,if you have other payment please contact me.
2) .Do you have them is stock?
Contact with Customer Service.
3).What is your warranty?
Our warranty is 12 months after delivery, Signalorigin pays high attention to after-sales service.
4).What should l do if there are any defective products at the receiving end?
If this happens, please contact us as soon as soon as possible.
5) .What products and services your company mainly provide?
D-sub Standard Connectors, High Density D-sub, Combination D-Sub(high current), Coaxial D-sub and so on.
