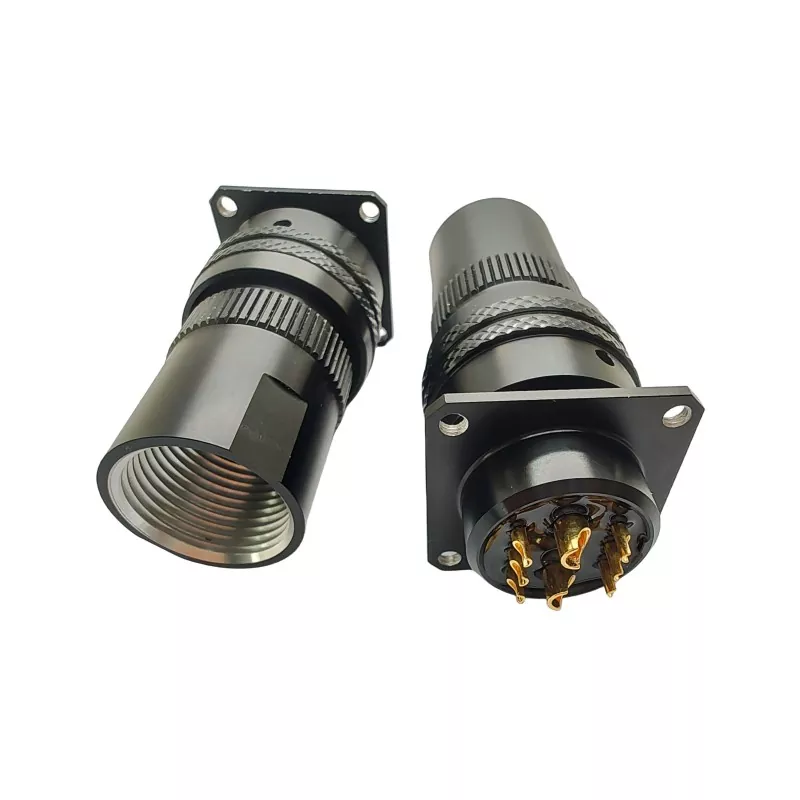

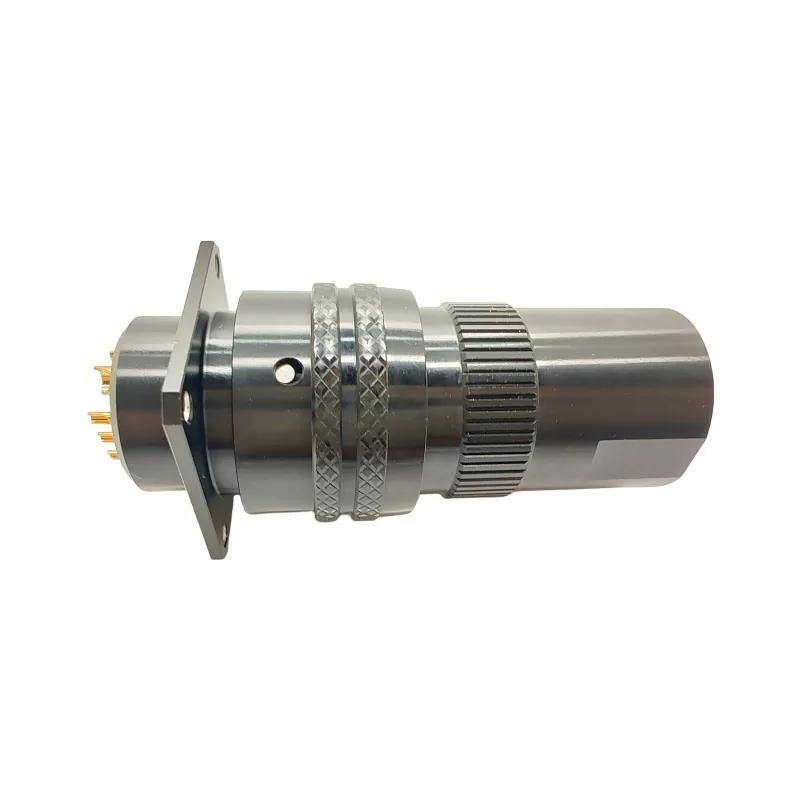

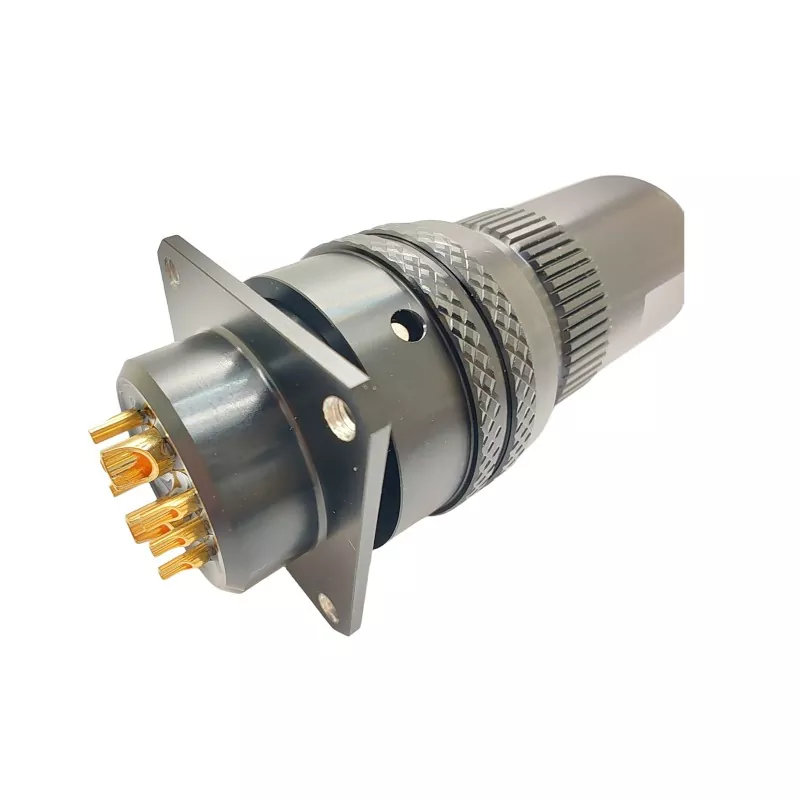

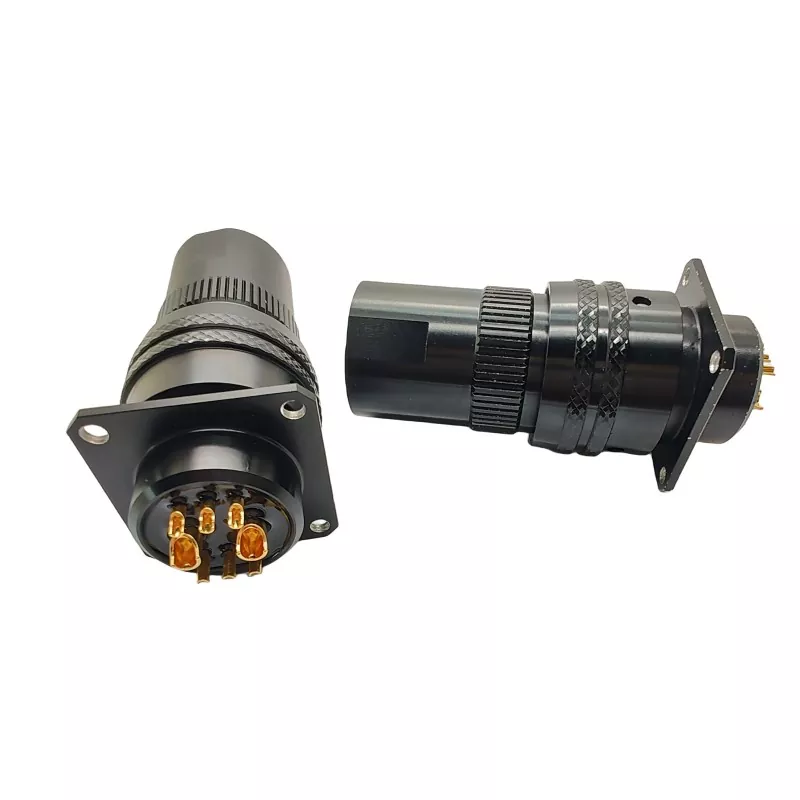

M20 Circular Connector (2+6)8Pin Female
  • M20 Circular Connector (2+6)8Pin Female M20 Circular Connector (2+6)8Pin Female
  • M20 Circular Connector (2+6)8Pin Female M20 Circular Connector (2+6)8Pin Female
  • M20 Circular Connector (2+6)8Pin Female M20 Circular Connector (2+6)8Pin Female
  • M20 Circular Connector (2+6)8Pin Female M20 Circular Connector (2+6)8Pin Female
  • M20 Circular Connector (2+6)8Pin Female M20 Circular Connector (2+6)8Pin Female

M20 Circular Connector (2+6)8Pin Female

M20 Circular Connector (2+6)8 Pin Females are known for their durability and reliability, and find applications in a wide range of industries. widely used in data, signal, and power applications. Circular connectors can be divided into a variety of types, each type has different characteristics and scope of application, users should choose the appropriate connector according to the actual needs.

Send Inquiry

Product Description

Product Introduction of the M20 Circular Connector (2+6)8 Pin Female

Compared to rectangular connectors, M20 circular connectors have a circular shell and a circular internal layout, which helps to realize fast connection and disconnection. Circular connectors are relatively small and lightweight, and can provide a variety of ways to connect and fix, also has many advantages. Circular connector housings are mostly made of plastic and metal. The robust housing provides high mechanical protection against shock and vibration, and SIGNALORIGIN® offers a wide range of options for connectors of M8, M12, M16, M20 7/8 inch, etc., depending on the connector's interface size.

Product Parameter (Specification) of the M20 Circular Connector (2+6)8 Pin Female

Material

Insulator material

PA66+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contact plating

Gold plated

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

120V AC

Current rating

5A+23A

Contact resistance

30mΩ Max

Insulation resistance

5000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

1500V AC rms  at 1 minute

Durability

300 cycles

Operating temperature

-40°C ~125°C

Product Feature of the M20 Circular Connector (2+6) Pin Female

We have 16 national certification qualifications.

More than 1,000 customer co-operation cases.

Product Details of the M7 8 Circular Connector 4 Pin Female

Manufacturing processes of the M7 8 Circular Connector 4 Pin Female

WHY CHOOSE US

Please feel free to choose us, we are a professional manufacturer!

FAQ

1) .If I don't have any drawings,can you still quote my product?

Yes,just provide as many details as possible about your product ,our qualified engineering staff can produce drawings. Please contact us if you have any other questions.


2) .What should l do if there are any defective products at the receiving end?

If this happens , please contact us as soon as soon as possible.


3) .Can you provide a Certificate of compliance with your goods?

Yes, our UL can be supplied , if requested at the time of order placement.


4) .What are D-sub connectors used for?

D-sub connectors are widely used for data and signal transmission in technology, computing, programming, and communications. They can be found in applications such as computer monitors, printers, keyboards, mice, serial and parallel ports, audio and video interfaces, and networking equipment.


5) .What's your delivery time?

5-7 working days for samples, 20-35 working days for bulk order.
